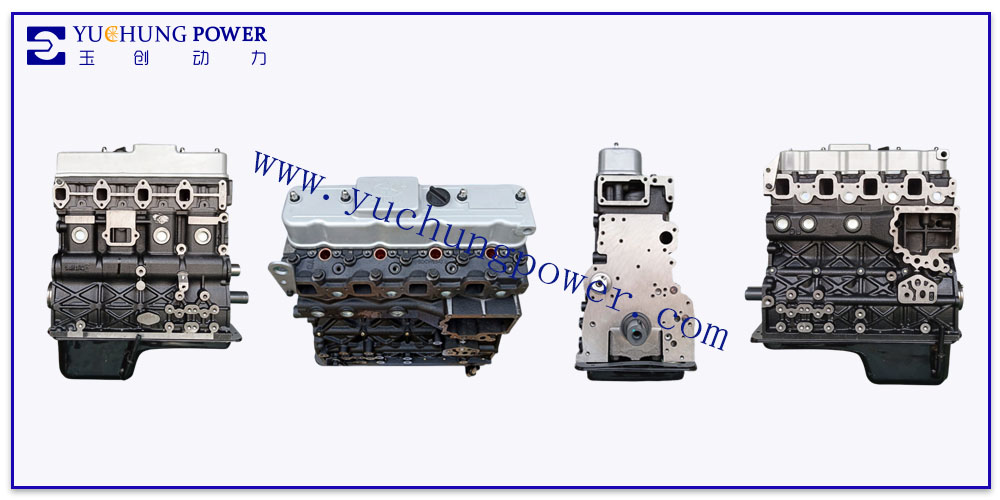

YUCHUNG POWER CATALOGUES FOR SIDA MOTOR SD488
The following is our product catalogue. We can provide all the spare parts of SIDA MOTOR SD488. For more information, please contact us at email ycpower2019@126.com. Looking forward to your inquiry.
Part Name Specification Applicable Models Drawing Number Feature Code
Fan Blade 1308010N_BW754U-68 SD488 SD000192
Bearing-Crankshaft Guide 6203/60203 SD488 GB/T276-1994C6203-LSJ
Bearing 3204A-2RS SD488 GB/T296-1994
Sensor (Speed) SD488 National 5 3602030YS_CW705R
Clutch Pressure Plate 240 SD488 1601400-BW60-50
Clutch Plate SD488 1060300-WZ1-33R
Clutch Plate 240 SD488 1601300-BW60-50
Clutch Plate SD488 National 5 1601300_MZL-01
Oil-gas separator 1014010S_BW754U-68 SD488 SD490 National IV SD000774
Oil-gas separator SD488 SD490 National IV 1014010-BW60-68A
Steering gear hydraulic pump SD488 3407010-CW703D-53
Turbocharger oil inlet pipe SD488 1118040-1-CW2
Turbocharger oil inlet pipe SD488 1118040-2_BW654U-08
Turbocharger SD488 National V 1118010FS1_CW705R-08S
Turbocharger JP45 SD488 1118010F-CW65-U
Turbocharger (National 5) 1118010FS-CW655R-09 SD488 SD000955 SD001052
Turbocharger 1118010F-CW703D-53 SD488 1118010T-CW703D-53
Glow plug 12-12-105/12V SD488 3750010N-CW65-U
Sensor (engine speed) SD488 3602030-CW65-U
Sensor (crankshaft position | National 5) 3602030H_CW4D SD488 SD000101
Sensor (crankshaft position | National 5) SD488 3602030HS-CW705R
Solenoid valve 12V SD488 1111010-BWB-33A
Starter QD158S 12V/3.2KW SD488 3708010J-CW65-U QD1536S
Starter (National 5) 3708010_BW754U-68B SD488 SD000412
Generator JFZB1702A SD488 3701010-CW65-U and 3701010-1-CW603D-67
Generator (National 5) JFZ2521 SD488 SD000413 3701010S_BW754U-68B
Generator (double slot) JFZ245*28V/45A SD488 National 5 SD000963 3701010S_CW655R-09A
Belt tensioner SD488 1023030-CW603D-69 h2.8cm
Fan belt 6PK2330 SD488 1308032-CW70-33U
Sensor (water temperature) TS6201C SD488 3602010J-CW603D
Thermostat cover (2 holes) SD488 1306013-WA1-015
Water pump SD488. National 5 1307010S_CW705R-08S
Water pump SD488 SD490 National 4 1307010-3-CW65-U
Water pump SD488 SD490 National IV SD485 National IV 1307010J-CW603D-68
Water pump (National 5) Common rail SD488 1307010S-CW755R-68S
Water pump 1307010S1_CW604U-68 SD488 SD490 National IV SD000374 Replacement SD000189
Water pump SD488 SD490 National IV 1307010JL1-CW604U-68
Oil pressure alarm 11.09 SD488 3808020-W-6
Oil cooler assembly 7 pieces SD488 1013010-CW2
Oil filter JX0814-T SD488 SD490 National IV 1012015-CW65-U
Oil filter assembly JX0814-T 1012010-2_CW65-U SD488 1012010-1-CW65-U
Oil pump driving gear 34 teeth with step SD488 1005037-CWZ d38/76mm
Oil pump gear SD488 1011014-1-CWZ 36c*d12/80mm
Oil pump 1011010-3-CW65-U SD488 1011010-2-CW65-U
Oil pan gasket SD488 SD490 National IV 1009031-1-CW703D-33
Vacuum regulator SD488 SD490 National IV 1200011C-CW603D-33J
Injector copper pad SD485 SD488 1112308-CW2 d8/16*h2mm
Injector copper sleeve SD490 SD488 1003056-CW2
Injector assembly National III SD488 1112000T-CW2
Advancer Jinhu/JQ388 SD488 1111013-CWZ
High-pressure common rail pipe (National V) 1129005S_CW705R SD488 SD000913
Advancer cover (6 holes) SD488 1002076-1-CW65-U
High-pressure oil pipe SD488 1129010/15/20/25-CW603D
High-pressure oil pump connecting gear Oil pump drive gear SD488 SD490 National IV 1111216-3-CW65-U
High-pressure oil pump (National 5) 1111000S-CW705R SD488 SD000951 1111000S1-CW705R
Return pipe SD488 1118050-CW65-U L90mm
Return pipe (injector | National 5) SD488 SD000941
Diesel filter SD488 National 5 1117015A_CW705R
Idler shaft PG/CW65-U SD488 1006048-CW65-U h42mm
Idle gear baffle SD488 1006049_CW65-U
Idle gear SD488 1006045-1-CWZ 53c*d45/117mm
Valve rocker shaft assembly L455mm SD488 1007090-CW65-U
Valve lifter WZ SD488 1007061-2-WZ
Valve oil seal 1007035T_CW4U universal SD4JD183R SD488 SD000008
Valve guide W SD485 SD490 SD488 1007032/W L52mm
Intake valve seat Q SD488 1007082-1-CW2
Intake valve CW2 SD488 1007011-CW2
Gear housing cover SD488 1002073-2-CW65U
Camshaft tooth SD488 1006021-CW603D 56c*d34/154mm
Camshaft tooth SD488 1006021-CWZ 56c*d34/123mm
Gear housing CW603 SD488 1002071-CW603D
Gear housing SD488 1002071F_BW60-05FU
Flywheel ring gear 109c SD485 SD490 SD488 1005122-1-W
Flywheel SD488 1005121-1-BW60-50
Flywheel housing gasket SD488 1002064-4-CW65-U
Flywheel housing SD488 1002061-2-CW2
Crankshaft pulley SD488 1005190-1-CW65-U
Crankshaft pulley SD488 1005046S2_BW754U-68 SD000429
Crankshaft pulley SD488 1005046-1_CW603D-68
Crankshaft tooth 28c SD488 1005084-1-CWZ d38/64*h33mm
Crankshaft tooth SD488 1005084-CW603D 28c*d38/80mm
Crankshaft thrust washer W SD485 SD488 SD490 1005181/182-3-W
Crankshaft bearing +0.00 SD488 1005171/172A-CW2
Crankshaft CW65 SD488 1005015-CW65-U
Crankshaft SD488 SD490ZLQ 1005015-CWZ 1005014_CWZ data display
Connecting rod screw nut (copper) M10mm SD488 SD485 SD490 1004027/W
Connecting rod bearing (upper) SD488 1004026-2-CW2
Connecting rod bearing (lower) SD488 1004027-1-CW2
Connecting rod bearing SD488 1004026/27-CW2
Connecting rod L220*d30/58mm SD488 SD493 1004010-CW2 Bevel at connecting rod sleeve
Piston cooling nozzle SD488 1002230-WZ
Piston cooling nozzle SD488 1002230-CW2
Piston pin SD488 1004018-CW2 d30*L72mm
Piston ring (single ball|full chrome) SD488 1004012-CW65-U/13/20-CWZ
Piston ring (National IV) SD488 SD0000041004012/13_CW653D/20CW4U
Piston National IV SD488 1004011-1-BW65-202U BW654U
Piston SD488 1004011-2_CW65-U
Cylinder liner water blocking ring CWZ SD488 1002017-CWZ
Four-matching (National V) SD488 G5SPT (705R)
Four-matching (National IV) piston BW65-202U SD488 488SPT (BW654U)
Four-matching CW603D is not available for purchase. Use drawing number G4SPT (new 2) instead of SD488 488SPT
Cylinder block SD488 1002015-CW65-U
Cylinder bed SD488 SD490ZLQ SD493ZL 1003022-1-CWZ
Full vehicle pad SD488 488QCD
Cylinder head SD488 1003010-3-CW65-U
Cylinder head (National 5) 1003010-5-CW65-U SD488 1003010-4-CW65-U
Valve cover gasket New style with grooved cylinder cover SD488 SD490 1003032-2-BW50
Valve cover SD488 1003031-CW55-33
